TL721x Series TL321x Series TLSR922x Series TLSR921x Series TLSR827x Series TLSR825x Series TLSR8208 Series

TL321x Series

NEW

The TL321x series is a low-power Bluetooth® System on Chip (SoC) that complies with the 802.15.4 standard and proprietary Bluetooth® technologies operating in the 2.4GHz frequency band. This series is compatible with a range of standards and specifications from industry alliances, including Bluetooth® Low Energy (LE), Zigbee, RF4CE, Thread, Matter, and various proprietary protocols in the 2.4GHz band. The TL321x series seamlessly integrates the essential features and functionalities necessary for high-performance wireless IoT devices, ensuring excellent operational efficiency.

Part Number

Type

Datasheet

Brochure

Bluetooth® Protocol

MCU SRAM Flash GPIO

Dimension (mm)

Buy

ML3219D-MERCURY-M0-PE11

Module Bluetooth® 5.4 RISC-V 32-bit 128KB 2MB 24 11.3x26x2.6mm

Software

Hardware

Software

Telink provides a complete SDK to help you develop and build IoT smart devices, which covers your entire product life cycle, from development to OTA maintenance. The Telink SDK always includes the latest technology protocols and provides secure and stable connectivity, which, combined with Telink IoT Studio integrated development tools, can help quickly achieve mass production.

Telink loT Studio

Telink loT Studio is an integrated development environment designed specifically for Telink chips. It supports firmware compilation, firmware download, and development debugging.

 SDK Name

Supported Chip

SDK Version

Download SDK

SDK Handbook

Bluetooth® LE Multi Connection TL321x V4.0.4.4 Github
Zigbee TL321x V3.7.1.4 Github
Zigbee + Bluetooth® LE Concurrent Mode TL321x V2.4.1.0 Github
Matter TL321x - Github
Platform TL321x V3.7.0 Github

Hardware

Provide complete hardware guideline and reference design to build various device forms based on the Telink hardware development platform.

Picture Product Name Description User Manual Design Guideline Reference Design Buy Now

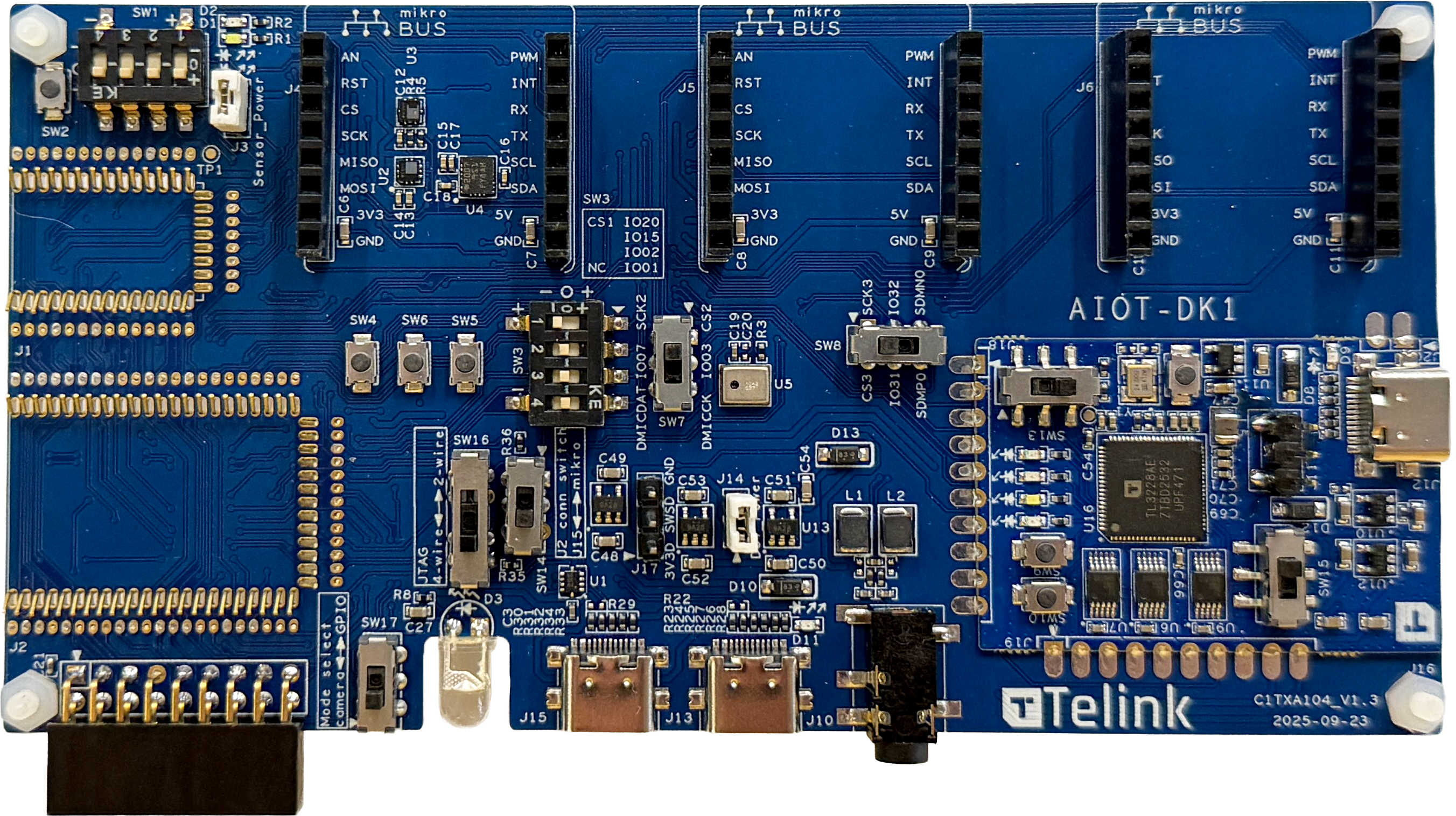

TL-EdgeAI-DK

The TL-EdgeAI-DK is a development platform specifically designed for Telink modules, supporting flexible integration of multiple types of modules. Telink provides users with a quick start guide to initiate the development process. The latest BDT is also required.

Download
